Phase Non-Segragated

The following definitions are taken from the ANSI / IEEE Standard for Metal-Enclosed Bus C37.23-2003 and are the applicable definitions underpinning Crown Electric Engineering and Manufacturing LLC's product offering;

Per section 3.10 types of Metal Enclosed bus assemblies: In general, there are three basic types of construction used: Non-segregated phase, Segregated-phase, and Isolated-phase.

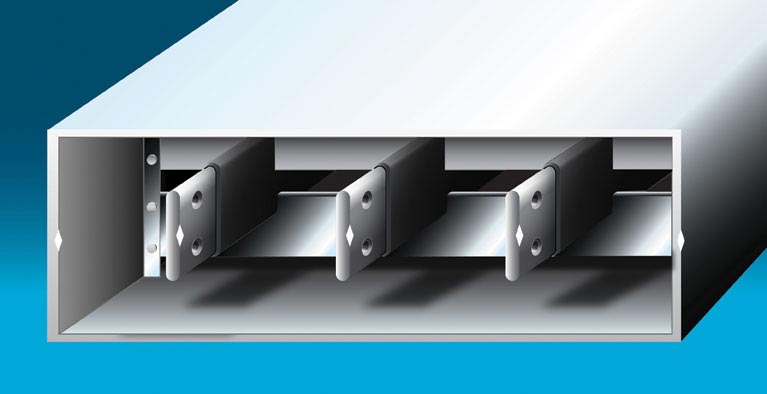

Non-segregated phase bus
One in which all phase conductors are in a common metal enclosure without barriers between the phases. When associated with metal-clad switchgear, the phase conductors of a non-insulated bus assembly entering the switchgear assembly and connecting to the switchgear bus shall be covered with insulating material equivalent to the switchgear insulation system.

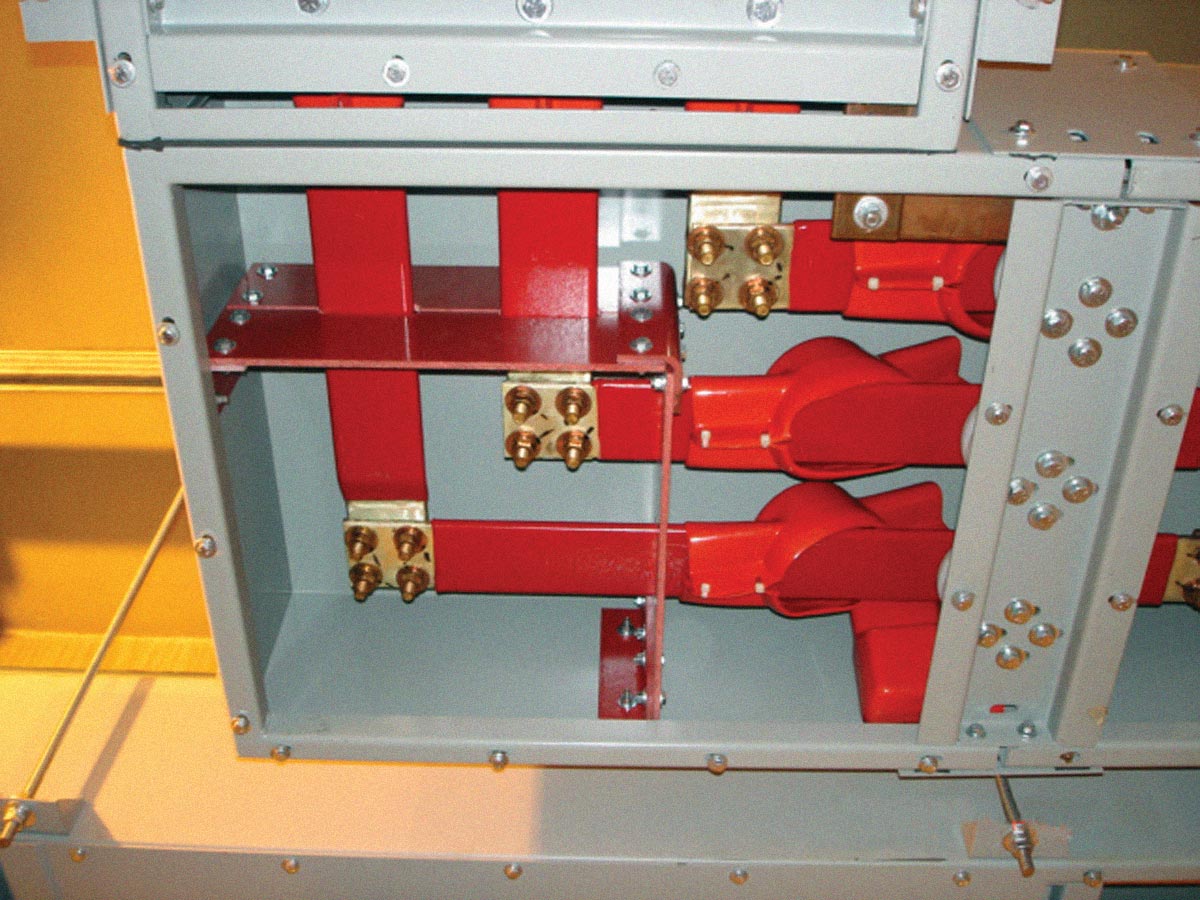

non seg

Please click on images for a hi res version.

IPBpic

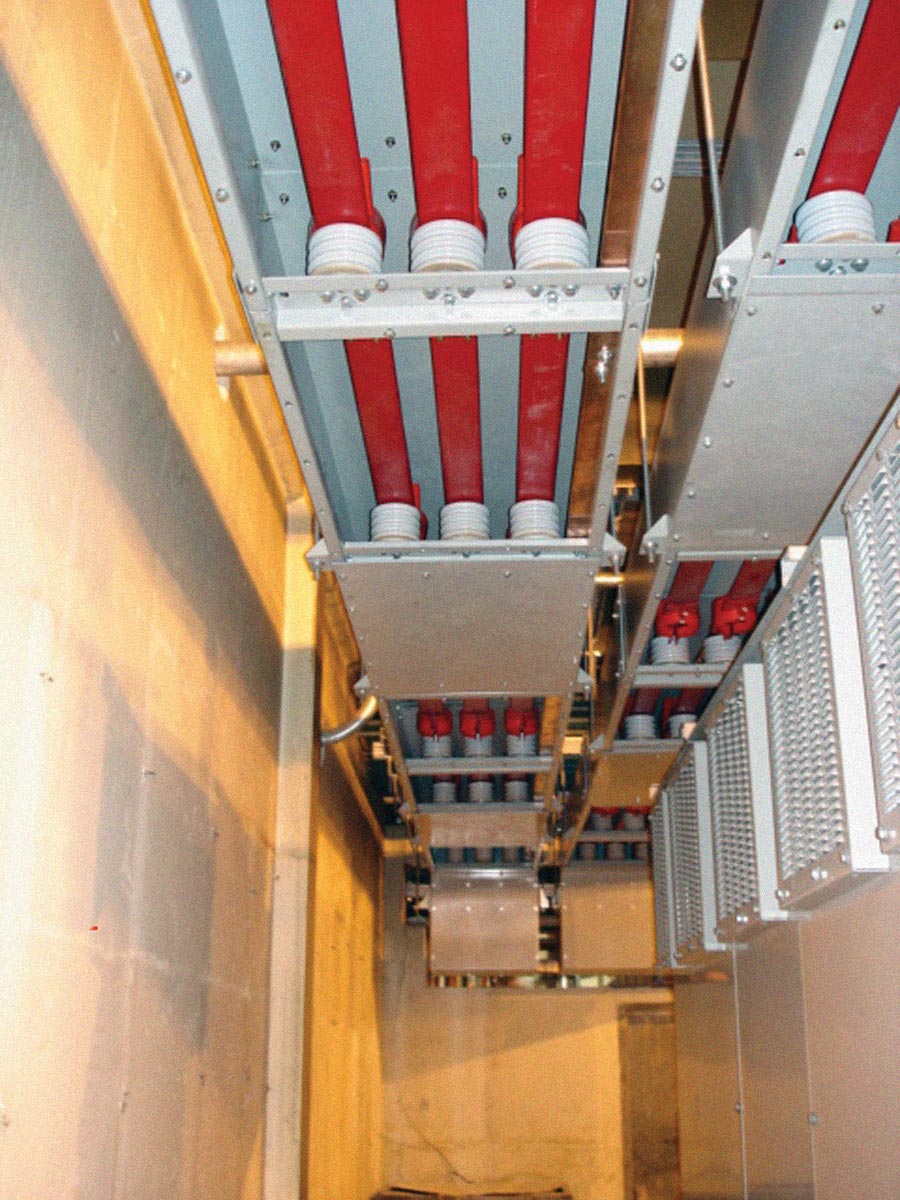

non-seg
